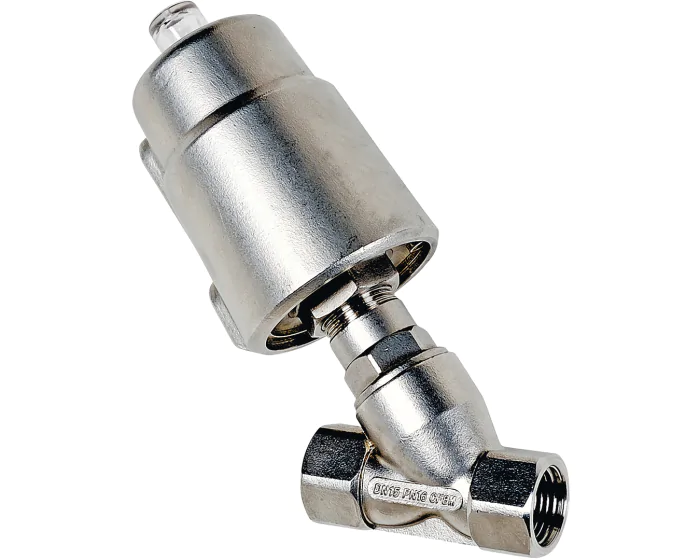

The HF Type 1430 pneumatic valve is a normally closed (NC), full bore, slanted, all stainless steel valve for automatic shut-off of fluid systems.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 16 |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 68.0 |
| Gasket | PTFE |
| Kv (m³/h) | 4.70 |
| Body material | Stainless steel CF8M (1.4408) |
| Bearing | PTFE |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | BSP FF |
| Control head | 50 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Flow entry | Above the seat |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' | 1430304 | S1001582 |
€91.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' | 1430305 | S1001583 |
€97.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' | 1430306 | S1001584 |
€114.24
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 | 1430407A | S1001585 |
€186.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 | 1430408A | S1001586 |
€192.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' | 1430509A | S1001587 |
€314.16
(excl. btw)
|
add to cart |
